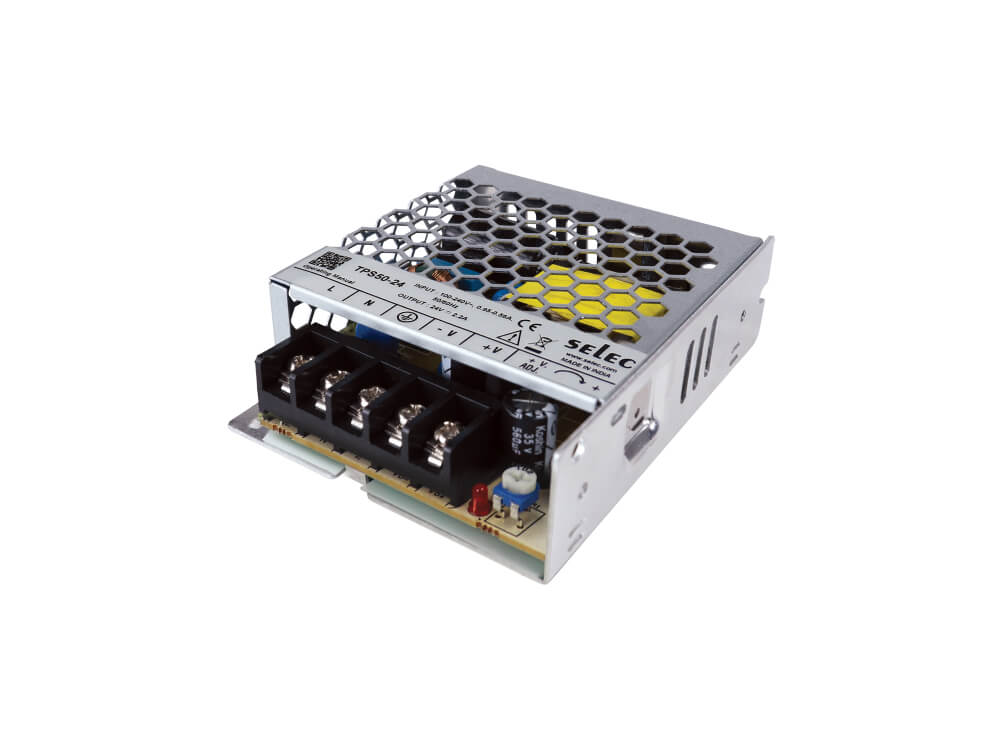

Power supply 50W, 24VDC, 2.2A
Supports 90 - 264 VAC / 127 - 373 VDC. Efficiencies up to 86%. Operating temperature: 40°C to +70°C. Compact size and 1U low profile. Protection against short circuit, overload & overvoltage. Cooling by free air convection.

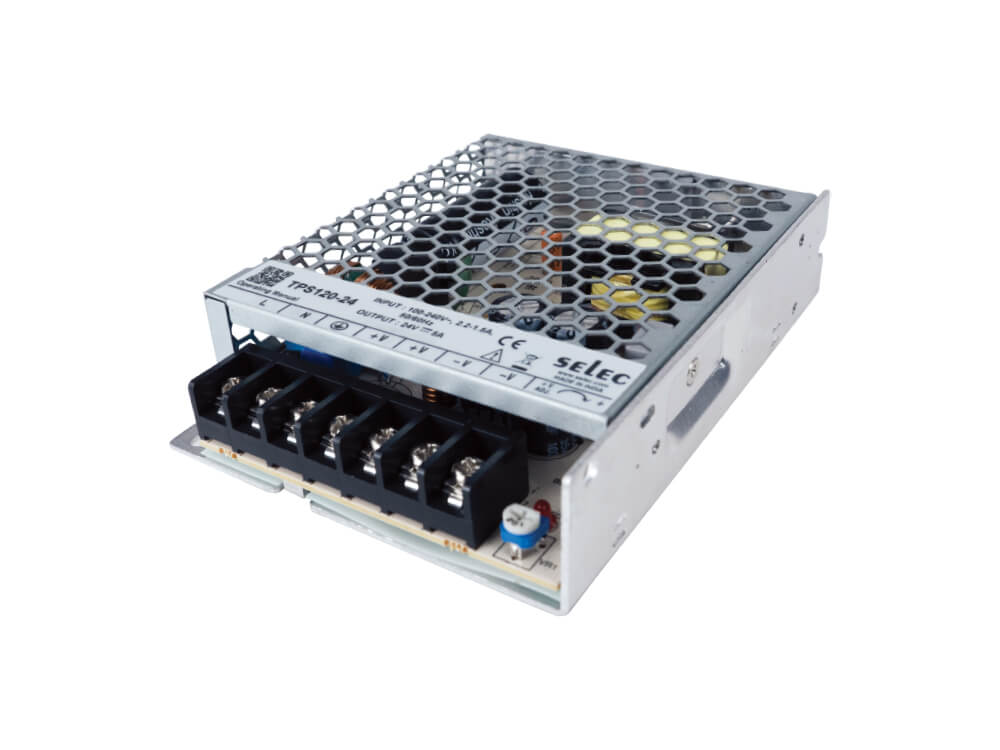

Power supply 120W, 24VDC, 5A
Supports 90 - 264 VAC / 127 - 373 VDC. Efficiencies up to 89%. Operating temperature: 40°C to +70°C. Compact size and 1U low profile. Protection against short circuit, overload & overvoltage. Cooling by free air convection.
30W, 12V / 2.5A DIN rail mounted Power supply in plastic housing
Supports 90 - 264 VAC / 127 - 370 VDC. Efficiencies up to 85%. Protection against short circuit, overload. Cooling by free air convection. Full power between -25°C to +50°C.
60W, 12V/5A DIN rail mounted Power Supply in Plastic Housing
Supports 90 - 264 VAC / 127 - 370 VDC. Efficiencies up to 87%. Protection against short circuit, overload, overvoltage & over temperature. Cooling by free air convection. UL 508 approved (E522848).
120W, 24V/5A DIN rail mounted Power Supply in Plastic Housing
Supports 90 - 264 VAC / 127 - 370 VDC. Efficiencies up to 89%. Protection against short circuit, overload, overvoltage & over temperature. Cooling by free air convection. UL 508 approved (E522848).

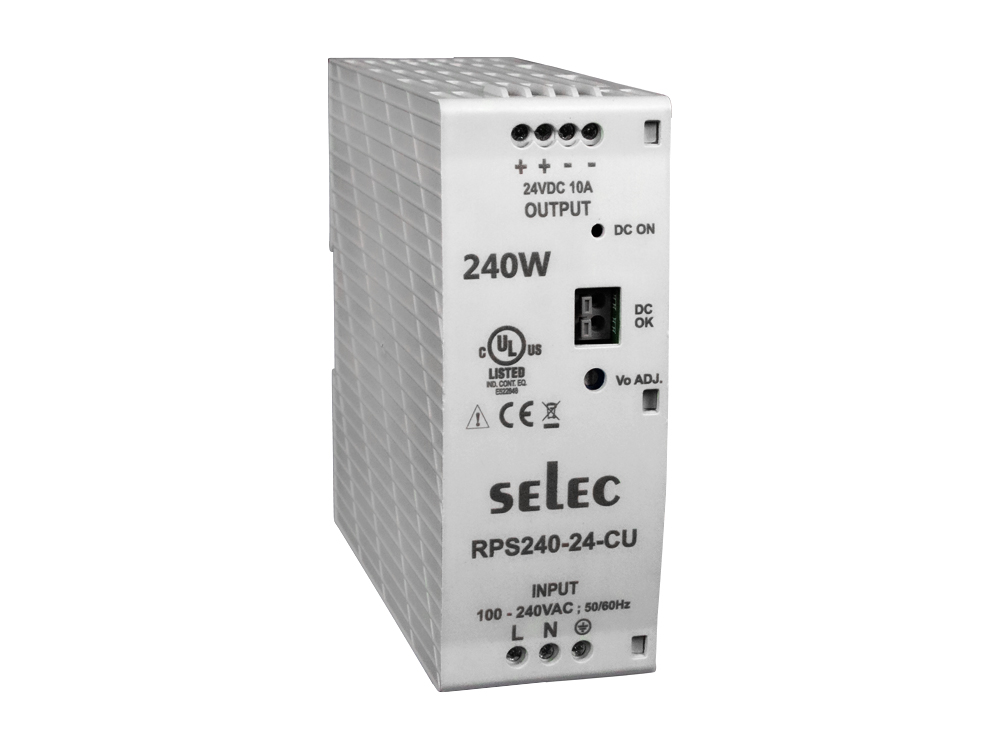

240W, 24V/10A DIN rail mounted Power Supply in Plastic Housing
Supports 90 - 264 VAC / 127 - 370 VDC. Power factor > 0.95 @ full load over entire input range. Protection against short circuit, overload, overvoltage & over temperature. Cooling by free air convection. UL 508 approved (E522848). Efficiencies up to 93%. DC OK Relay contact.

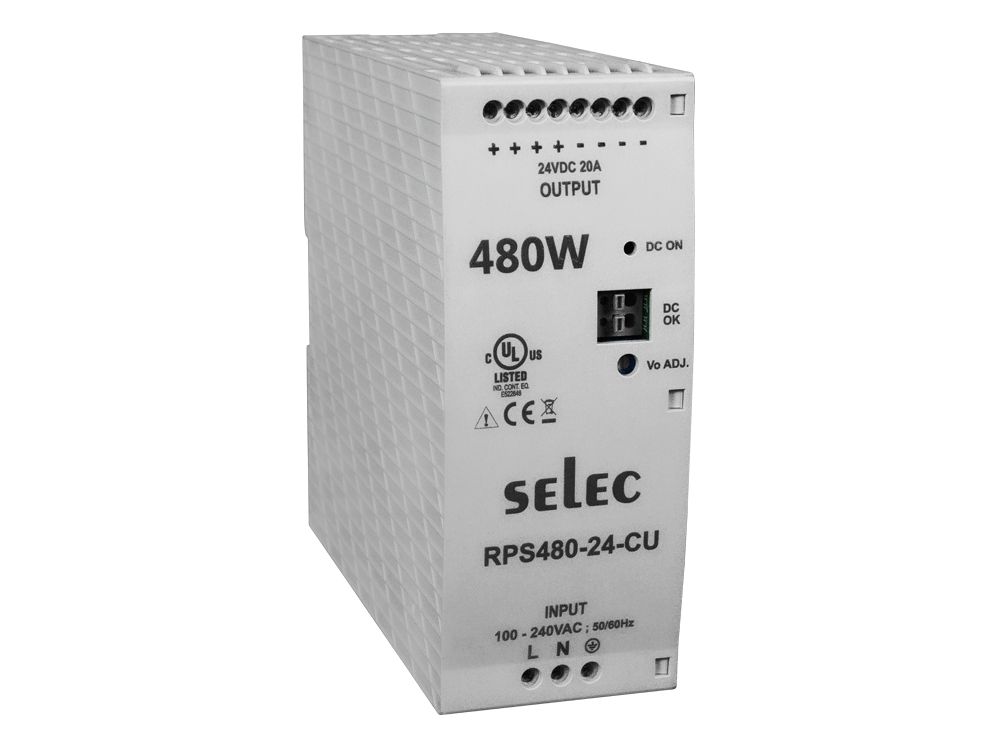

480W, 24V/20A DIN rail mounted Power Supply in Plastic Housing
Supports 90 - 264 VAC / 127 - 370 VDC. Power factor > 0.95 @ full load over entire input range. Protection against short circuit, overload, overvoltage & over temperature. Cooling by free air convection. UL 508 approved (E522848). Efficiencies up to 93%. DC OK Relay contact.
